JP2A-SP

Bluetooth-Enabled Desiccant Air Dryer

Regenerates only when the compressor is pumping, tracks dryer cycles and service history, and sends service updates by text message.

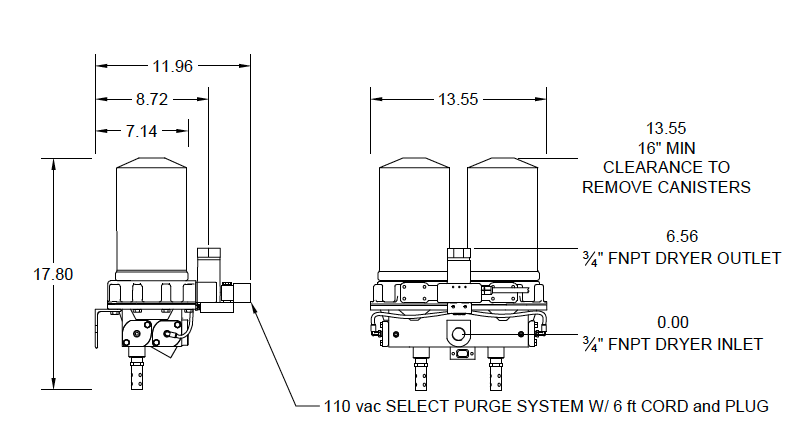

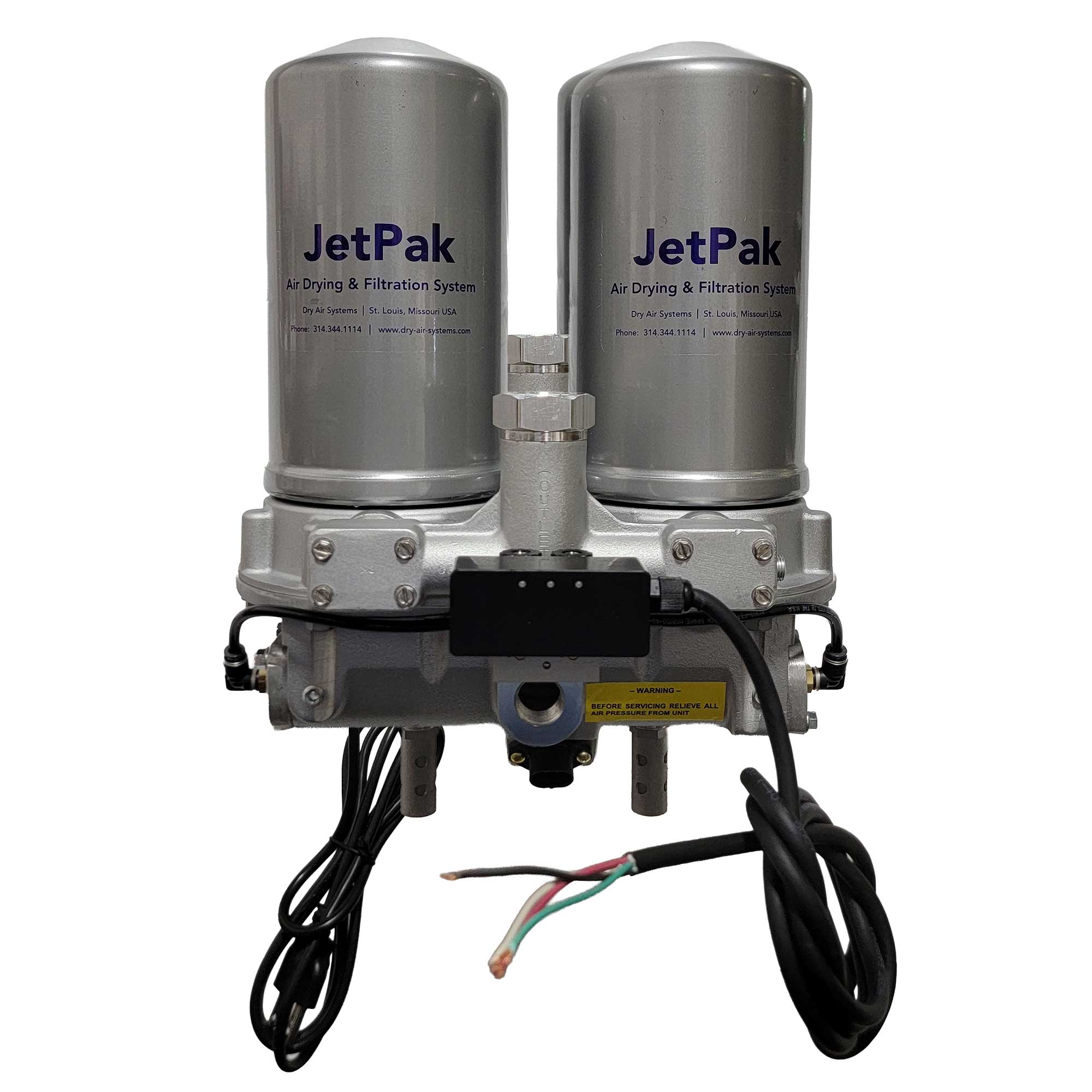

JP2A-SP Desiccant Air Dryer System

Zero loss condensate auto drain — Select an image to enlarge

Bluetooth technology
Records number of dryer cycles	Will not drain air from system overnight
Tracks service history	Service updates sent by text message
Selectable timed regeneration cycles	90-second cycle for high flow120-second cycle for moderate flow
Regenerates only when compressor is pumping	Test cycles for service analysis
Installs on Air Pak dryers currently in service	Cartridge-style replacement valves
0.3 micron filtration	Spin on / off desiccant cartridges
Optional zero-loss condensate auto drain (PDF)

Regeneration orifice
.014

Max flow @ 100% duty
14 CFM

Max flow @ 70% duty
27 CFM

Air Pak Service Components for JP2A-SP Desiccant Air Dryer System

SERVICE COMPONENTS w/ 8LB. cartridges

Air-Pak Service Components

Scroll sideways to see all dryer sizes & kit contents

Illustration	Part Number	Ref	Air-Pak HC w/ 8 lb. Desiccant Cartridges						Contents of Service Kit
Illustration	Part Number	Ref	2 or 4	6	10	12	18	24	Contents of Service Kit
	650830	A	2	3	5	6	9	12	Grey Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves
	650700	A	2	3	5	6	9	12	Blue Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves
	650951	A	2	3	5	6	9	12	White Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves
	4055A002	A	2	3	5	6	9	12	Grey Desiccant Cartridge KitIncludes 2 desiccant cartridges
	4055A020	A	2	3	5	6	9	12	Blue Desiccant Cartridge KitIncludes 2 desiccant cartridges
	4055A012	A	2	3	5	6	9	12	White Desiccant Cartridge KitIncludes 2 desiccant cartridges
	619702	D	2	3	5	6	9	12	Valve Service KitIncludes 2 inlet check valves, 2 purge valves
	619730	C	1	3	5	6	9	12	.060 Regeneration Valve Kit
	619717	K1	1	1	1	1	1	1	Air Control Valve for 2 Solenoid PLC
	619812	K1	1			1			Air Control Valve for 4 Solenoid PLC
	619820	K1		1		1	1	1	Air Control Valve for 6 Solenoid PLC
	619714	K	1	1	1	1	1		2 Solenoid – 110 Volt Programmable Logic Controller – Electronics Only
	619824	K	1	~	1	~	1		4 Solenoid – 110 Volt Programmable Logic Controller – Electronics Only
	619937	K	1	~	~	~	~	~	6 Solenoid – 110 Volt Programmable Logic Controller – Electronics Only
	619814	K & K1	1	1	1	1	1	1	2 Solenoid Select Purge PLC
	619815	K & K1	1	~	1	~	1	1	4 Solenoid Programmable Logic Controller
	619816	K & K1	~	1	~	1	1	1	6 Solenoid Programmable Logic Controller
	619740	H	2	3	5	6	9	12	Pressure Relief Valve
	619750	L	2	3	5	6	9	12	110 VAC Heater Kit (optional)
	619782	L	2	3	5	6	9	12	12 VDC Heater Kit (optional)
	619784	L	2	3	5	6	9	12	24 VDC Heater Kit (optional)
	619760	I	1	3	5	6	9	12	Disc Filter
	619760	B	4	6	10	12	18	24	Cartridge Stud for Grey Cartridges
	619765	B	4	6	10	12	18	24	Cartridge Studs for Blue, White, Purple Cartridges
	619734	N	1	2	3	~	~	~	Right Side Blue + White CanisterAdapter Plate + Stud Together
	619735	N	1	2	3	~	~	~	Left Side Blue + White CanisterAdapter Plate + Stud Together
	619736	N	1	2	3	~	~	~	Left Side Grey CanisterAdapter Plate + Stud Together
	619737	N	~	2	3	~	~	~	Right Side Grey CanisterAdapter Plate + Stud Together
	619770	—	4	6	10	12	18	24	Small Mufflers (optional)
	619915	—	4	6	10	12	18	24	Large Mufflers (optional)
	619942	—	1	1	1	1	1	1	2 Stack Wall Strut w/ slot
	619945	—							4 Stack Wall Strut w/ slot
	619950	—							6 Stack Wall Strut w/ slot
	619990	M	2	3	5	6	9	12	Wall Mount Bracket
