High Capacity
15HP 60CFM
Continuous High-Volume Output
Built to handle the rigorous demands of heavy industry—from ready-mix concrete and cement batching to precision plasma cutting and delicate control instrumentation.
High Capacity
15HP 60CFM Dry Air System
- JP3B — Grey desiccant cartridge air dryer system
- AP3B — Blue desiccant cartridge air dryer system
- WP3B — White desiccant cartridge air dryer system
| Features | Benefits |
|---|---|
| PDP in excess of −40 °FPressure and flow affect performance | 1.5″ inlet / outlet ports |
| Designed regeneration | 0.3 micron filtration |
| 110 / 220 volt AC 12 / 24 volt DC |
Custom voltages available |
| Pneumatically controlled option (PDF) | Classified / explosion proof |
| Cartridge-style replacement valves | Modular, expandable design |
| Select purge option (PDF)Reduces regeneration air usage | Spin on / off desiccant cartridges |
| Optional zero-loss condensate auto drain (PDF) | |
- Regeneration orifice
- .030−P3B = .030 orifice
- Max flow @ 100% duty
- 42 CFM
- Max flow @ 70% duty
- 60 CFM

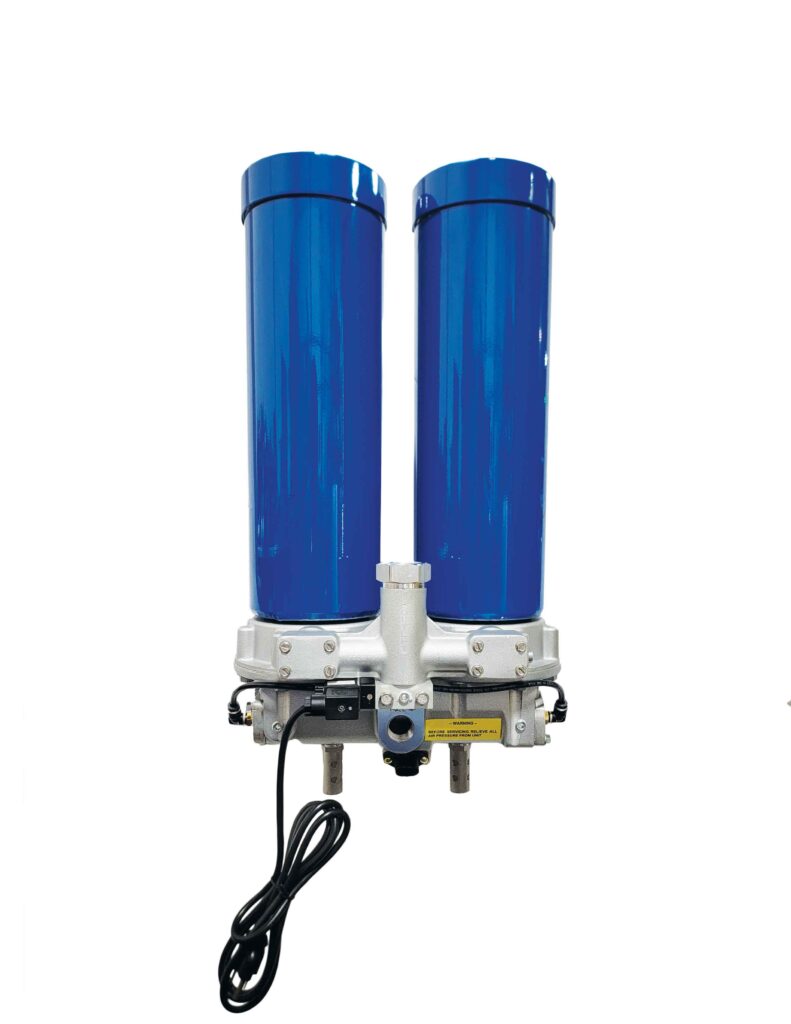

High Capacity Canisters
- JP3B-L — Grey desiccant cartridge air dryer system
- AP3B-L — Blue desiccant cartridge air dryer system
- WP3B-L — White desiccant cartridge air dryer system
Service Schematic for 15HP 60CFM Dry Air System
Twin Tower w/MLT
The descriptions detailed in this twin tower schematic represent the sequencing of airflow as it relates to the actual drying process and transition – wet to dry – within all dryer systems including both Programmable Logic (PLC) and Pneumatically Controlled (PC) systems
SERVICE COMPONENTS w/ 8LB. Desiccant Cartridges
Service Schematic AIR-PAK Dryer w/ PLC
(Represents one dryer within PLC dryer system)
PLC Total Cycle Sequence 180 sec.Cartridge 1 regenerates for 45 sec. Cartridge 2, 3, 4 receives wet air. PLC switches Cartridge 2 regenerates for 45 sec. Cartridge 1, 3, 4 receives wet air. PLC switches |
PC Total Cycle Sequence 240 sec.Cartridge 1 regenerates for 60 sec. Cartridge 2, 3, 4 receives wet air. PC switches Cartridge 2 regenerates for 60 sec. Cartridge 1, 3, 4 receives wet air. PC switches |

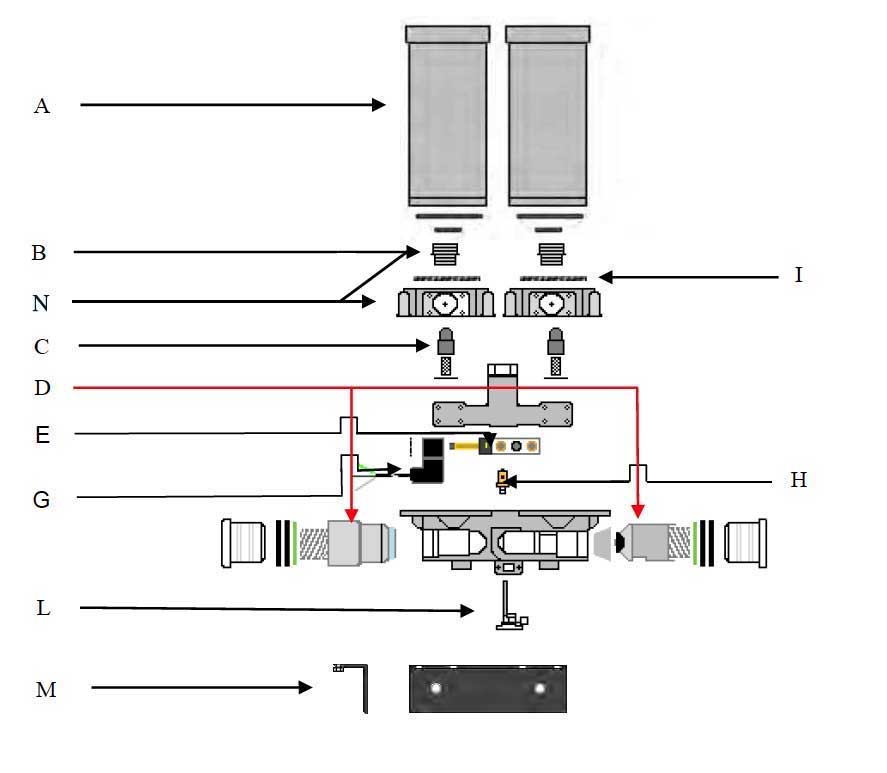

Air Pak Service Components for 15HP 60CFM Dry Air System
Air-Pak HC Service Components
Scroll sideways to see all dryer sizes & kit contents
| Illustration | Part Number | Ref | Air-Pak HC w/ 8 lb. Desiccant Cartridges | Contents of Service Kit | |||||
|---|---|---|---|---|---|---|---|---|---|
| 2 or 4 | 6 | 10 | 12 | 18 | 24 | ||||
 |
650830 | A | 2 | 3 | 5 | 6 | 9 | 12 | Grey Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves |
| 650700 | A | 2 | 3 | 5 | 6 | 9 | 12 | Blue Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves | |
| 650951 | A | 2 | 3 | 5 | 6 | 9 | 12 | White Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves | |
| 4055A002 | A | 2 | 3 | 5 | 6 | 9 | 12 | Grey Desiccant Cartridge KitIncludes 2 desiccant cartridges | |
| 4055A020 | A | 2 | 3 | 5 | 6 | 9 | 12 | Blue Desiccant Cartridge KitIncludes 2 desiccant cartridges | |
| 4055A012 | A | 2 | 3 | 5 | 6 | 9 | 12 | White Desiccant Cartridge KitIncludes 2 desiccant cartridges | |
 |
619702 | D | 2 | 3 | 5 | 6 | 9 | 12 | Valve Service KitIncludes 2 inlet check valves, 2 purge valves |
 |
619730 | C | 1 | 3 | 5 | 6 | 9 | 12 | .060 Regeneration Valve Kit |
 |
619755 | E | 1 | – | – | – | – | – | Air Control Valve – Two air lines |
 |
619790 | G | 1 | 1 | 1 | 1 | 1 | 1 | 110 Volt Micro Logic Timer (MLT) |
| 619924 | G | 1 | 1 | 1 | 1 | 1 | 1 | 12 VDC Micro Logic Timer (MLT) | |
| 619912 | G | 1 | 1 | 1 | 1 | 1 | 1 | 24 VDC Micro Logic Timer (MLT) | |
 |
619740 | H | 2 | 3 | 5 | 6 | 9 | 12 | Pressure Relief Valve |
 |
619750 | L | 2 | 3 | 5 | 6 | 9 | 12 | 110 VAC Heater Kit (optional) |
| 619782 | L | 2 | 3 | 5 | 6 | 9 | 12 | 12 VDC Heater Kit (optional) | |
| 619784 | L | 2 | 3 | 5 | 6 | 9 | 12 | 24 VDC Heater Kit (optional) | |
 |
619760 | I | 1 | 3 | 5 | 6 | 9 | 12 | Disc Filter |
 |
619760 | B | 4 | 6 | 10 | 12 | 18 | 24 | Cartridge Stud for Grey Cartridges |
| 619765 | B | 4 | 6 | 10 | 12 | 18 | 24 | Cartridge Studs for Blue, White, Purple Cartridges | |
 |
619734 | N | 1 | 2 | 3 | – | – | – | Right Side Blue + White CanisterAdapter Plate + Stud Together |
| 619735 | N | 1 | 2 | 3 | – | – | – | Left Side Blue + White CanisterAdapter Plate + Stud Together | |
| 619736 | N | 1 | 2 | 3 | – | – | – | Left Side Grey CanisterAdapter Plate + Stud Together | |
| 619737 | N | – | 2 | 3 | – | – | – | Right Side Grey CanisterAdapter Plate + Stud Together | |
 |
619770 | — | 4 | 6 | 10 | 12 | 18 | 24 | Small Mufflers (optional) |
| 619915 | — | 4 | 6 | 10 | 12 | 18 | 24 | Large Mufflers (optional) | |
 |
619942 | — | 1 | ~ | ~ | ~ | ~ | ~ | Wall Strut w/ slot for two cartridge dryer system |
 |
619990 | M | 2 | 3 | 5 | 6 | 9 | 12 | Wall Mount Bracket |
