20HP Select Purge 40CFM

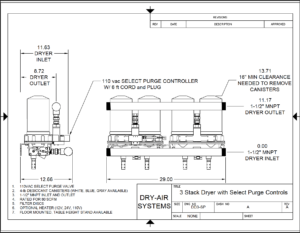

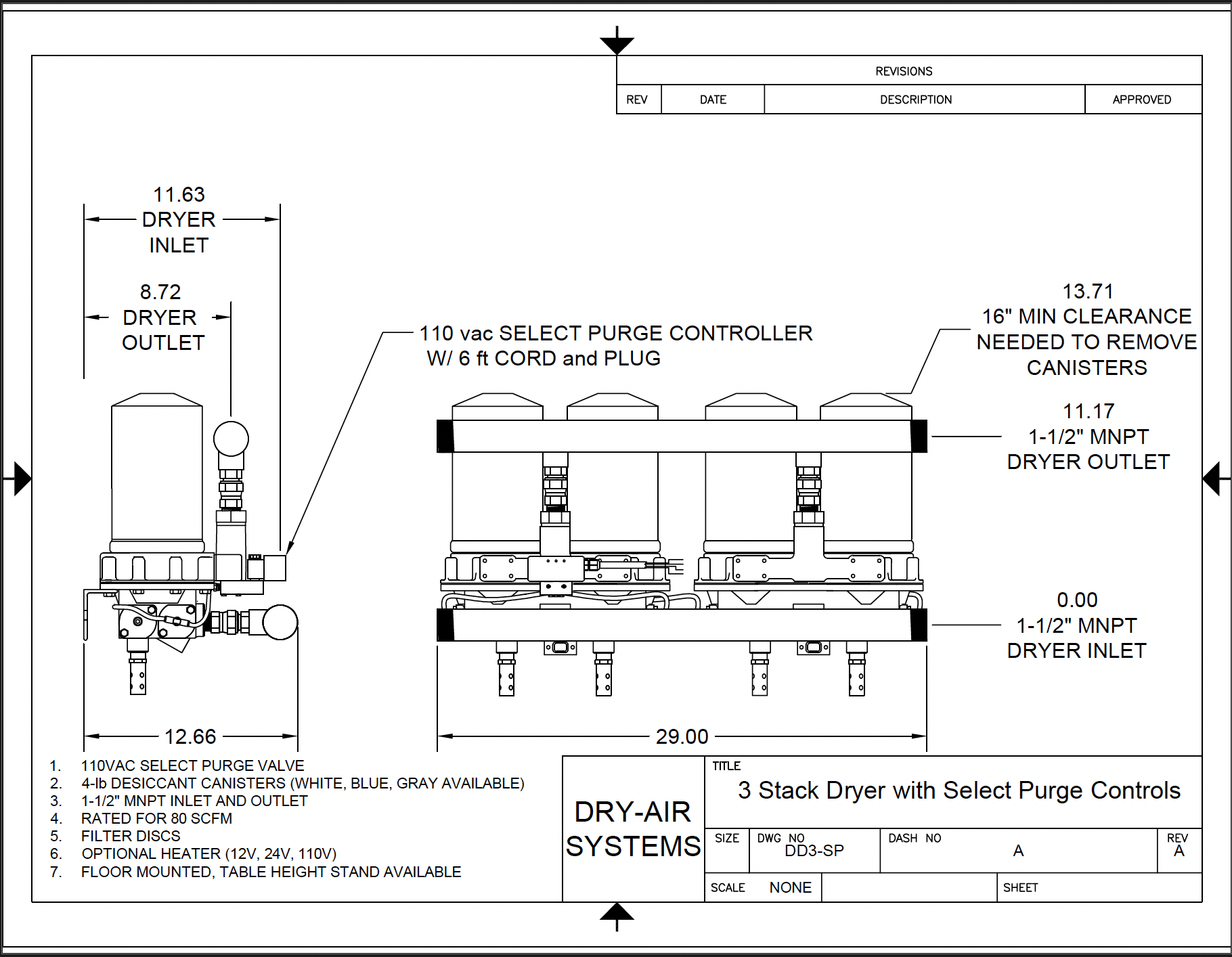

JP3B-SP Desiccant Air Dryer System
| Bluetooth technology | |
|---|---|
| Records number of dryer cycles | Will not drain air from system overnight |
| Tracks service history | Service updates sent by text message |
| Selectable timed regeneration cycles | 90-second cycle for high flow120-second cycle for moderate flow |
| Regenerates only when compressor is pumping | Test cycles for service analysis |
| Installs on Air Pak dryers currently in service | Cartridge-style replacement valves |
| 0.3 micron filtration | Spin on / off desiccant cartridges |
| Optional zero-loss condensate auto drain (PDF) | |
Regeneration orifice
.014
.014
Max flow @ 100% duty
14 CFM
14 CFM
Max flow @ 70% duty
27 CFM
27 CFM
Service Schematic JP2A-SP Desiccant Air Dryer System Service Components
Twin Tower w/MLT
The descriptions detailed in this twin tower schematic represent the sequencing of airflow as it relates to the actual drying process and transition – wet to dry – within all dryer systems including both Programmable Logic (PLC) and Pneumatically Controlled (PC) systems
SERVICE COMPONENTS w/ 8LB. Desiccant Cartridges
Service Schematic AIR-PAK Dryer w/ PLC
(Represents one dryer within PLC dryer system)
|
<...e Sequence 180 sec.
Cartridge 1 regenerates for 45 sec. Cartridge 2, 3, 4 receives wet air. PLC switches Cartridge 2 regenerates for 45 sec. Cartridge 1, 3, 4 receives wet air. PLC switches |
PC Total Cycle Sequence 240 sec.Cartridge 1 regenerates for 60 sec. Cartridge 2, 3, 4 receives wet air. PC switches Cartridge 2 regenerates for 60 sec. Cartridge 1, 3, 4 receives wet air. PC switches |
Air Pak Service Components for JP2A-SP Desiccant Air Dryer System
SERVICE COMPONENTS w/ 8LB. cartridges
Air-Pak Service Components
Scroll sideways to see all dryer sizes & kit contents
| Illustration | Part Number | Ref | Air-Pak HC w/ 8 lb. Desiccant Cartridges | Contents of Service Kit | |||||
|---|---|---|---|---|---|---|---|---|---|
| 2 or 4 | 6 | 10 | 12 | 18 | 24 | ||||
 |
650830 | A | 2 | 3 | 5 | 6 | 9 | 12 | Grey Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves |
| 650700 | A | 2 | 3 | 5 | 6 | 9 | 12 | Blue Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves | |
| 650951 | A | 2 | 3 | 5 | 6 | 9 | 12 | White Cartridges – Full Service KitIncludes 2 each desiccant cartridges, inlet & purge valves | |
| 4055A002 | A | 2 | 3 | 5 | 6 | 9 | 12 | Grey Desiccant Cartridge KitIncludes 2 desiccant cartridges | |
| 4055A020 | A | 2 | 3 | 5 | 6 | 9 | 12 | Blue Desiccant Cartridge KitIncludes 2 desiccant cartridges | |
| 4055A012 | A | 2 | 3 | 5 | 6 | 9 | 12 | White Desiccant Cartridge KitIncludes 2 desiccant cartridges | |
 |
619702 | D | 2 | 3 | 5 | 6 | 9 | 12 | Valve Service KitIncludes 2 inlet check valves, 2 purge valves |
 |
619730 | C | 1 | 3 | 5 | 6 | 9 | 12 | .060 Regeneration Valve Kit |
 |
619717 | K1 | 1 | 1 | 1 | 1 | 1 | 1 | Air Control Valve for 2 Solenoid PLC |
| 619812 | K1 | 1 | 1 | Air Control Valve for 4 Solenoid PLC | |||||
| 619820 | K1 | 1 | 1 | 1 | 1 | Air Control Valve for 6 Solenoid PLC | |||
 |
619714 | K | 1 | 1 | 1 | 1 | 1 | 2 Solenoid – 110 Volt Programmable Logic Controller – Electronics Only | |
| 619824 | K | 1 | ~ | 1 | ~ | 1 | 4 Solenoid – 110 Volt Programmable Logic Controller – Electronics Only | ||
| 619937 | K | 1 | ~ | ~ | ~ | ~ | ~ | 6 Solenoid – 110 Volt Programmable Logic Controller – Electronics Only | |
 |
619814 | K & K1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 Solenoid Select Purge PLC |
| 619815 | K & K1 | 1 | ~ | 1 | ~ | 1 | 1 | 4 Solenoid Programmable Logic Controller | |
| 619816 | K & K1 | ~ | 1 | ~ | 1 | 1 | 1 | 6 Solenoid Programmable Logic Controller | |
 |
619740 | H | 2 | 3 | 5 | 6 | 9 | 12 | Pressure Relief Valve |
 |
619750 | L | 2 | 3 | 5 | 6 | 9 | 12 | 110 VAC Heater Kit (optional) |
| 619782 | L | 2 | 3 | 5 | 6 | 9 | 12 | 12 VDC Heater Kit (optional) | |
| 619784 | L | 2 | 3 | 5 | 6 | 9 | 12 | 24 VDC Heater Kit (optional) | |
 |
619760 | I | 1 | 3 | 5 | 6 | 9 | 12 | Disc Filter |
 |
619760 | B | 4 | 6 | 10 | 12 | 18 | 24 | Cartridge Stud for Grey Cartridges |
| 619765 | B | 4 | 6 | 10 | 12 | 18 | 24 | Cartridge Studs for Blue, White, Purple Cartridges | |
 |
619734 | N | 1 | 2 | 3 | ~ | ~ | ~ | Right Side Blue + White CanisterAdapter Plate + Stud Together |
| 619735 | N | 1 | 2 | 3 | ~ | ~ | ~ | Left Side Blue + White CanisterAdapter Plate + Stud Together | |
| 619736 | N | 1 | 2 | 3 | ~ | ~ | ~ | Left Side Grey CanisterAdapter Plate + Stud Together | |
| 619737 | N | ~ | 2 | 3 | ~ | ~ | ~ | Right Side Grey CanisterAdapter Plate + Stud Together | |
 |
619770 | — | 4 | 6 | 10 | 12 | 18 | 24 | Small Mufflers (optional) |
| 619915 | — | 4 | 6 | 10 | 12 | 18 | 24 | Large Mufflers (optional) | |
 |
619942 | — | 1 | 1 | 1 | 1 | 1 | 1 | 2 Stack Wall Strut w/ slot |
| 619945 | — | 4 Stack Wall Strut w/ slot | |||||||
| 619950 | — | 6 Stack Wall Strut w/ slot | |||||||
 |
619990 | M | 2 | 3 | 5 | 6 | 9 | 12 | Wall Mount Bracket |
Air-Pak Select Purge wiring options.
Wiring guides
Air-Pak Select Purge wiring options.
Three ways to connect your dryer. Tap any diagram to enlarge it, or download the PDF for each option.
OPTION 01

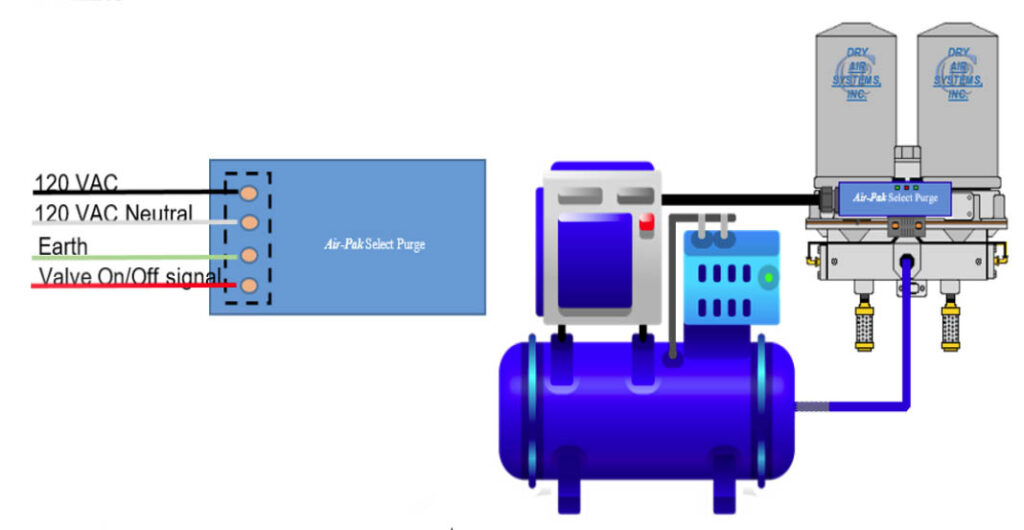

Direct to air compressor pressure control
Connecting the 4-wire system to the air compressor’s pressure control.
BlackConnect to 120 VAC power source
WhiteConnect to 120 VAC common neutral
GreenConnect to earth ground
RedAccepts 24 VDC to 480 VAC. Connect the signal from either:
- the compressor pressure switch on/off side, or
- the compressor inlet valve solenoid signal
Operation check
ONVoltage applied to Red wire (compressor motor running)Dryer cycles and regenerates
OFFNo voltage applied (compressor motor off)Dryer cycles and regeneration flow stop
Note: If the Red wire is never connected, Air-Pak Select Purge still operates automatically, but regeneration air continues while the compressor motor is off. The Red wire can be connected at any time (e.g., when the dryer is moved to another compressor), and the microprocessor resets automatically to work as described above.
OPTION 02

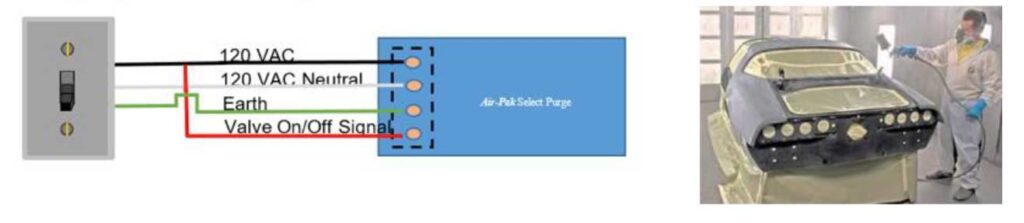

Wired to a dedicated switch
For a dryer installed at point of use, e.g., a paint booth. Air-Pak Select Purge can connect directly to a 110 V dedicated switch.
BlackConnect to 120 VAC dedicated ON/OFF switch
Wht/RedConnect to 120 VAC common neutral
GreenConnect to earth ground
Air-Pak Select Purge is powered when the remote switch is turned “ON” or “OFF.”
OPTION 03
Plugged into a wall receptacle
For a dryer installed at point of use, e.g., a paint booth. Air-Pak Select Purge can connect directly to a 110 V dedicated switch.
BlackConnect to 120 VAC dedicated ON/OFF switch
Wht/RedConnect to 120 VAC common neutral
GreenConnect to earth ground
Air-Pak Select Purge is powered when the remote switch is turned “ON” or “OFF.”
Custom sizing
Many other sizes available upon request.
Applications
(smaller operations)
Redi-Mix Plants
Cement Batch Plants
Plasma Cutting
Instrument Air
Point Of Use Manufacturing
Packaging Equipment
Paint Booths
Maintenance Equipment
Repair Shops
Spray Foam Insulation
