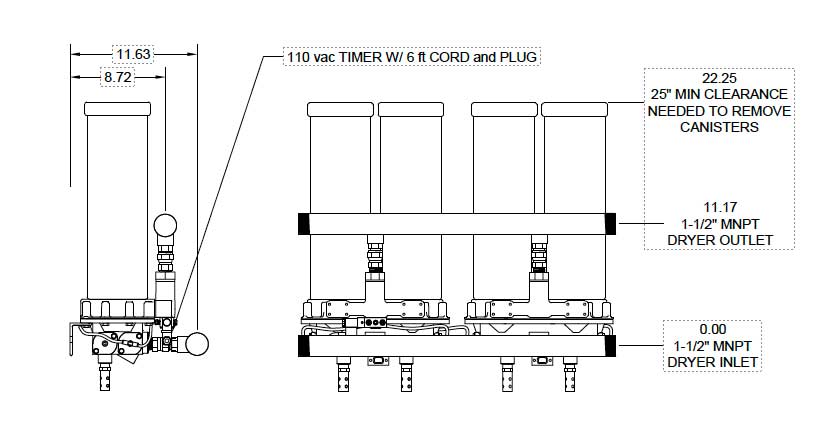

20HP 80CFM
JP3B = Grey Desiccant Cartridge Air Dryer System
AP3B = Blue Desiccant Cartridge Air Dryer System
WP3B = White Desiccant Cartridge Air Dryer System
Features | Benefits | |
---|---|---|
PDP In Excess Of -40°F* |
1.5″ Inlet/Outlet Ports | |
Designed Regeneration | .3 Micron Filtration | |
110, 220 Volt AC 12, 24, Volt DC |
Custom Voltages Available | |
Pneumatically Controlled Option | Classified / Explosion Proof | |
Cartridge Style Replacement Valves |
Modular Design Expandable |
|
Select Purge Option* Saves Regeneration Air Usage |
Spin On/Off Desiccant Cartridges |
|
Optional Zero Loss Condensate Auto Drain | ||
Regeneration Orifice .030 | Max Flow@ 100% Duty Cycle 56 CFM |
Max Flow@ 70% Duty Cycle 80 CFM |
80 CFM w/MLT
The descriptions detailed on page “Twin Tower w/MLT” schematic represents the sequencing of air flow as it relates to the actual drying process and transition – wet to dry – within all dryer systems including Programmable Logic (PLC) and Pneumatically Controlled (PC) systems
120 sec. Cartridge 2, 4 regenerate for 120 for sec. MLT switchesCartridge 2, 4 receives wet air for 120 sec. Cartridge 1, 3 regenerate for 120 for sec. MLT switches |
Service Schematic AIR-PAK Dryer w/ MLT
(Represents one dryer within MLT dryer system)

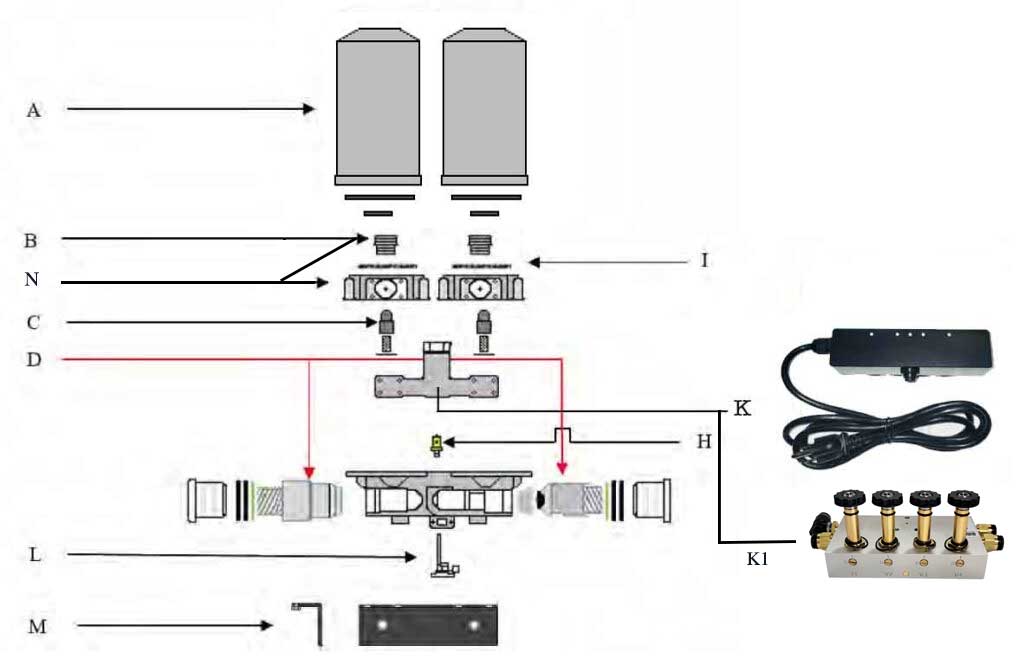

Air Pak Service Components
Drag to see full table

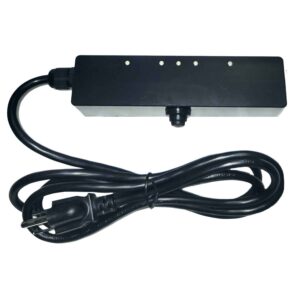

Micro Logic Timer (MLT) Applications (5 – 200 CFM Dryer Systems)
1.Identify dryer system by counting numbers of desiccant cartridges, e.g., 2, 4, 6
2.Locate service component identity, e.g., A, B, C, etc.
3.Under “QTY”, order appropriate number of kits specific to cartridge totals
