75HP 300CFM
JP10C= Grey Desiccant Cartridge Air Dryer System
AP10C = Blue Desiccant Cartridge Air Dryer System
WP10C = Blue Desiccant Cartridge Air Dryer System
High Capacity Canisters

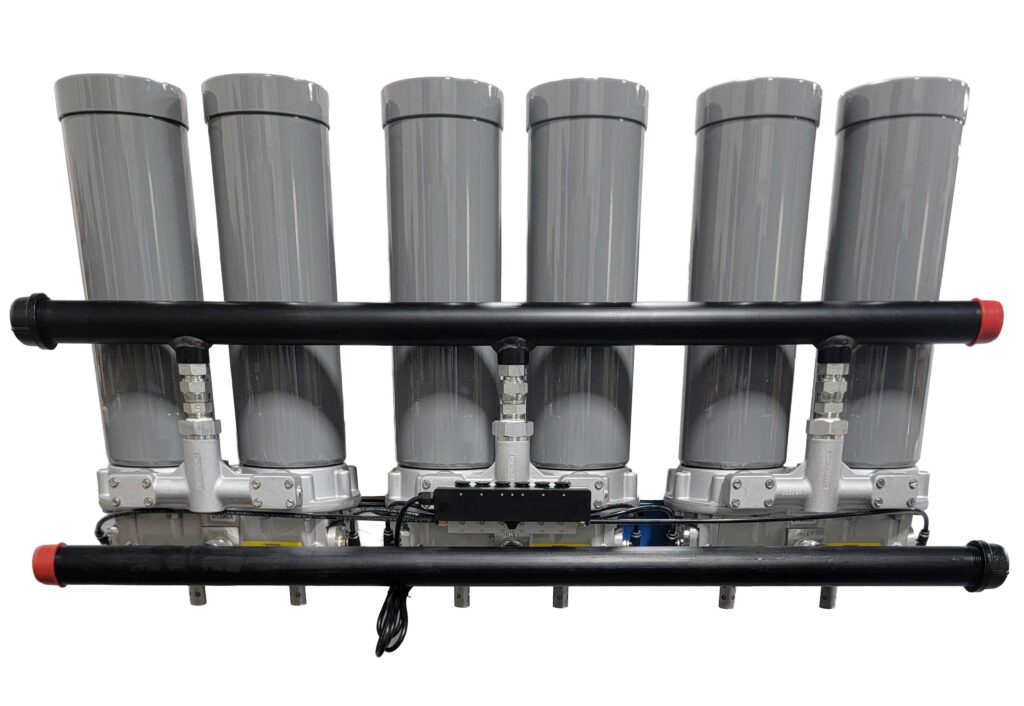

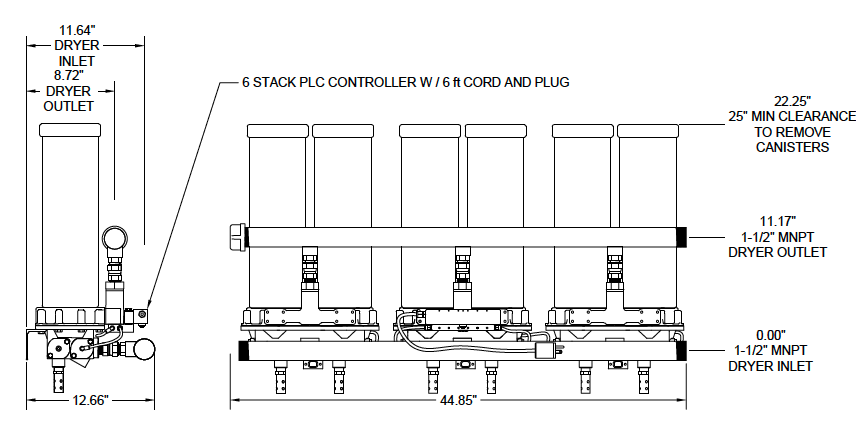

JP6C-L = Grey Desiccant Cartridge Air Dryer System
AP6C-L = Blue Desiccant Cartridge Air Dryer System
WP6C-L = White Desiccant Cartridge Air Dryer System
Features | Benefits | |
---|---|---|
PDP In Excess Of -40°F* |
1.5″ Inlet/Outlet Ports | |
Designed Regeneration | .3 Micron Filtration | |
110, 220 Volt AC 12, 24, Volt DC |
Custom Voltages Available | |
Pneumatically Controlled Option | Classified / Explosion Proof | |
Cartridge Style Replacement Valves |
Modular Design Expandable |
|
Select Purge Option* Saves Regeneration Air Usage |
Spin On/Off Desiccant Cartridges |
|
Optional Zero Loss Condensate Auto Drain | ||
Regeneration Orifice .030 | Max Flow@ 100% Duty Cycle 210 CFM |
Max Flow@ 70% Duty Cycle 300 CFM |
120 CFM w/PLC and PC systems
REMINDER: PC controller not illustrated however, distributes pilot signals in same sequence as a PLC controller.
The descriptions detailed on page “Twin Tower w/MLT” schematic represents the sequencing of air flow as it relates to the actual drying process and transition – wet to dry – within all dryer systems including Programmable Logic (PLC) and Pneumatically Controlled (PC) systems.
PLC Total Cycle Sequence 180 sec.Cartridge 1 regenerates for 45 sec. Cartridge 2, 3, 4 receives wet air. PLC switches Cartridge 2 regenerates for 45 sec. Cartridge 1, 3, 4 receives wet air. PLC switches |
PC Total Cycle Sequence 240 sec.Cartridge 1 regenerates for 60 sec. Cartridge 2, 3, 4 receives wet air. PC switches Cartridge 2 regenerates for 60 sec. Cartridge 1, 3, 4 receives wet air. PC switches |
Service Schematic AIR-PAK Dryer w/ PLC
(Represents one dryer within PLC dryer system)
Programmable Logic Control (PLC) Applications (120, 240 400, 600, 800 CFM Dryer Systems)
1. Identify dryer system by counting numbers of desiccant cartridges, e.g., 2, 4, 6
2. Locate service component identity, e.g., A, B, C, etc.
3. Under “Qty”, order appropriate number of kits specific to cartridge total
Air Pak Service Components
Drag to see full table
60CFM Unit
SERVICE COMPONENTS w/ 8LB. Desiccant Cartridges
Service Schematic AIR-PAK Dryer w/ PLC
(Represents one dryer within PLC dryer system)
Micro Logic Timer (MLT) & Programmed Logic Controller (PLC) Dryer Systems
1.Identify dryer system by counting numbers of desiccant cartridges, e.g., 2, 4, 6
2.Locate service component identity, e.g., A, B, C, etc.
3.Under “QTY”, order appropriate number of kits specific to cartridge totals
Air Pak Service Components
Drag to see full table
