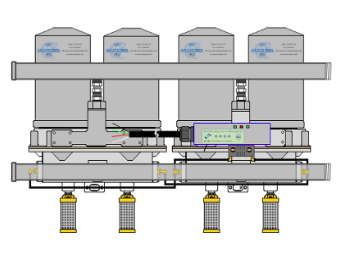

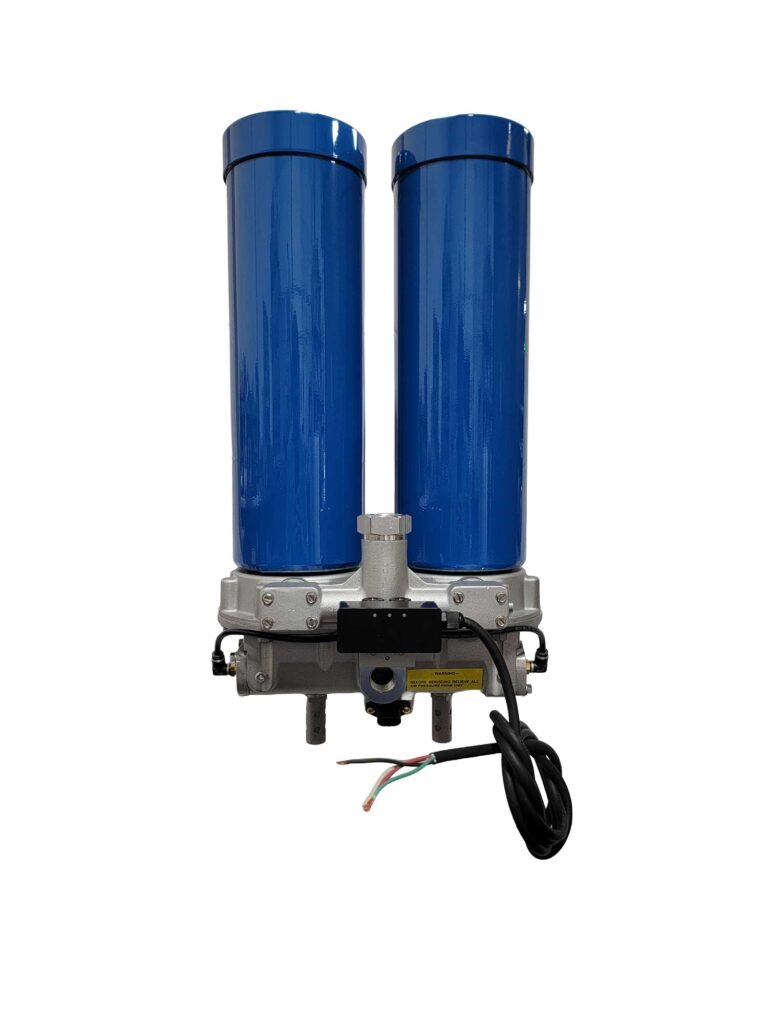

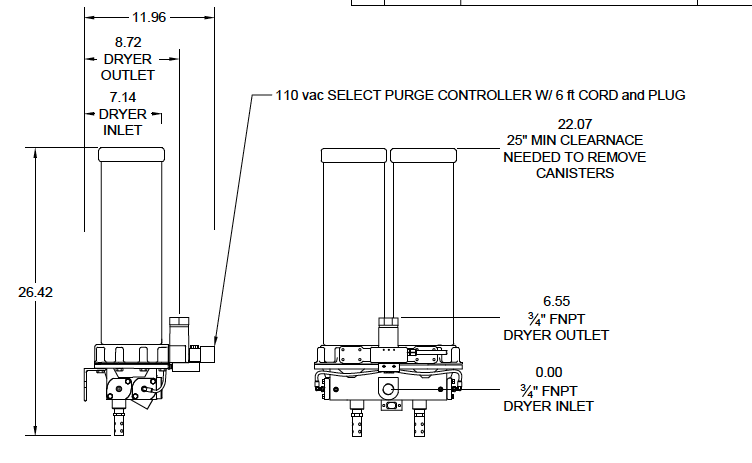

JP3B-SP Desiccant Air Dryer System
| Bluetooth Technology | |
|---|---|
| Records Number Of Dryer Cycles | Will Not Drain Air From System Overnight |
| Tracks Service History | Service Updates Text Messaged |
| Select Regeneration Timed Cycles | 90 Second Cycle For High Flow120 Second Cycle For Moderate Flow |
| Regenerates Only When Compressor Pumping | Test Cycles For Service Analysis |
| Installs On Air Pak Dryers Currently In Service | Cartridge Style Replacement Valves |
| .3 Micron Filter | Spin On/Off Desiccant Cartridges |
| Optional Zero Loss Condensate Auto Drain | |
Regeneration orifice.014
Max flow @ 100% duty14 CFM
Max flow @ 70% duty27 CFM
Air Pak Service Components
Drag or scroll horizontally to see full table
| Illustration | Part Number | Ref | Air-Pak HC w/ 8lb. Desiccant Cartridges | Contents of Service Kit | |||||
|---|---|---|---|---|---|---|---|---|---|
| 2 or 4 | 6 | 10 | 12 | 18 | 24 | ||||
 |
650830 | A | 2 | 3 | 5 | 6 | 9 | 12 | Grey Cartridges – Full Service Kit Includes 2 each desiccant cartridges, inlet & purge valves |
| 650700 | A | 2 | 3 | 5 | 6 | 9 | 12 | Blue Cartridges – Full Service Kit Includes 2 each desiccant cartridges, inlet & purge valves |
|
| 650951 | A | 2 | 3 | 5 | 6 | 9 | 12 | White Cartridges – Full Service Kit Includes 2 each desiccant cartridges, inlet & purge valves |
|
| 4055A002 | A | 2 | 3 | 5 | 6 | 9 | 12 | Grey Desiccant Cartridge Kit Includes 2 desiccant cartridges |
|
| 4055A020 | A | 2 | 3 | 5 | 6 | 9 | 12 | Blue Desiccant Cartridge Kit Includes 2 desiccant cartridges |
|
| 4055A012 | A | 2 | 3 | 5 | 6 | 9 | 12 | White Desiccant Cartridge Kit Includes 2 desiccant cartridges |
|
 |
619702 | D | 2 | 3 | 5 | 6 | 9 | 12 | Valve Service Kit Kits includes 2 inlet check valves, 2 purge valves |
 |
619730 | C | 1 | 3 | 5 | 6 | 9 | 12 | .060 Regeneration valve kit |
 |
619717 | K1 | 1 | 1 | 1 | 1 | 1 | 1 | Air Control Valve For 2 Solenoid PLC |
| 619812 | K1 | 1 | 1 | Air Control Valve For 4 Solenoid PLC | |||||
| 619820 | K1 | 1 | 1 | 1 | 1 | Air Control Valve For 6 Solenoid PLC | |||
|
|
619714 | K | 1 | 1 | 1 | 1 | 1 | 2 Solenoid – 110 Volt Programmed Logic Controller – Electronics Only | |
| 619824 | K | 1 | ~ | 1 | ~ | 1 | 4 Solenoid – 110 Volt Programmed Logic Control – Electronics Only | ||
| 619937 | K | 1 | ~ | ~ | ~ | ~ | ~ | 6 Solenoid – 110 Volt Programmed Logic Control – Electronics Only | |
|
|
619814 | K&K1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 Solenoid Select Purge PLC |
| 619815 | K&K1 | 1 | ~ | 1 | ~ | 1 | 1 | 4 Solenoid Programmable Logic Controller | |
| 619816 | K&K1 | ~ | 1 | ~ | 1 | 1 | 1 | 6 Solenoid Programmable Logic Controller | |
 |
619740 | H | 2 | 3 | 5 | 6 | 9 | 12 | Pressure Relief Valve |
 |
619750 | L | 2 | 3 | 5 | 6 | 9 | 12 | 110 VAC Heater Kit (optional) |
| 619782 | L | 2 | 3 | 5 | 6 | 9 | 12 | 12 VDC Volt Heater Kit (optional) | |
| 619784 | L | 2 | 3 | 5 | 6 | 9 | 12 | 24 VDC Volt Heater Kit (optional) | |
 |
619760 | I | 1 | 3 | 5 | 6 | 9 | 12 | Disc Filter |
 |
619760 | B | 4 | 6 | 10 | 12 | 18 | 24 | Cartridge Stud for Grey Cartridges |
| 619765 | B | 4 | 6 | 10 | 12 | 18 | 24 | Cartridge Studs for Blue, White, Purple Cartridges | |
 |
619734 | N | 1 | 2 | 3 | ~ | ~ | ~ | Right Side Blue + White Canister Adapter Plate + Stud Together |
| 619735 | N | 1 | 2 | 3 | ~ | ~ | ~ | Left Side Blue + White Canister Adapter Plate + Stud Together |
|
| 619736 | N | 1 | 2 | 3 | ~ | ~ | ~ | Left Side Grey Canister Adapter Plate + Stud Together |
|
| 619737 | N | ~ | 2 | 3 | ~ | ~ | ~ | Right Side Grey Canister Adapter Plate + Stud Together |
|
 |
619770 | ~ | 4 | 6 | 10 | 12 | 18 | 24 | Small Mufflers (optional) |
| 619915 | ~ | 4 | 6 | 10 | 12 | 18 | 24 | Large Mufflers (optional) | |
 |
619942 | ~ | 1 | ~ | ~ | ~ | ~ | ~ | Wall Strut w/slot for two cartridge dryer system |
 |
619990 | M | 2 | 3 | 5 | 6 | 9 | 12 | Wall Mount Bracket |
Applications
Redi-Mix Plants
Cement Batch Plants
Plasma Cutting
Instrument Air
Point Of Use Manufacturing
Packaging Equipment
Paint Booths
Maintenance Equipment
Repair Shops
Spray Foam Insulation
