150HP 600CFM Dry Air System

JP18C — Grey desiccant cartridge air dryer system
AP18C — Blue desiccant cartridge air dryer system
WP18C — White desiccant cartridge air dryer system

High capacity canisters

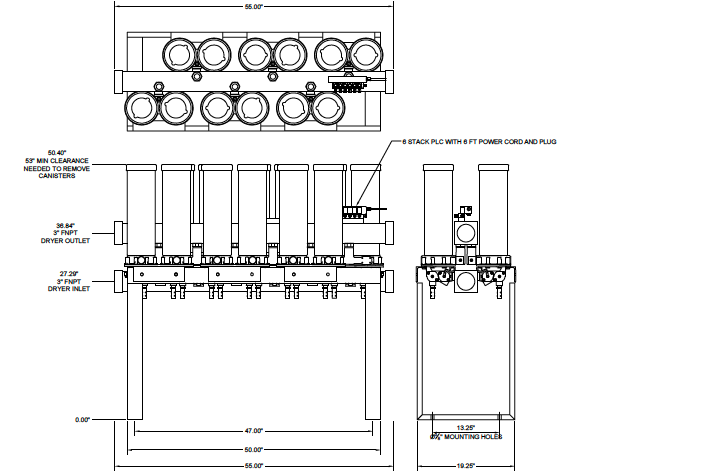

JP12C-L — Grey desiccant cartridge air dryer system
AP12C-L — Blue desiccant cartridge air dryer system
WP12C-L — White desiccant cartridge air dryer system

JP18C desiccant cartridge air dryer system — Select an image to enlarge

Zero loss condensate auto drain — Select an image to enlarge

Features	Benefits
PDP in excess of −40 °FPressure and flow affect performance	1.5″ inlet / outlet ports
Designed regeneration	0.3 micron filtration
110 / 220 volt AC 12 / 24 volt DC	Custom voltages available
Pneumatically controlled option (PDF)	Classified / explosion proof
Cartridge-style replacement valves	Modular, expandable design
Select purge option (PDF)Reduces regeneration air usage	Spin on / off desiccant cartridges
Optional zero-loss condensate auto drain (PDF)

Regeneration orifice: .030−P18C / −P12C-L = .030 orifice
Max flow @ 100% duty: 420 CFM
Max flow @ 70% duty: 600 CFM

120 CFM w/PLC and PC systems

REMINDER: PC controller not illustrated however, distributes pilot signals in same sequence as a PLC controller.

The descriptions detailed on page “Twin Tower w/MLT” schematic represents the sequencing of air flow as it relates to the actual drying process and transition – wet to dry – within all dryer systems including Programmable Logic (PLC) and Pneumatically Controlled (PC) systems.

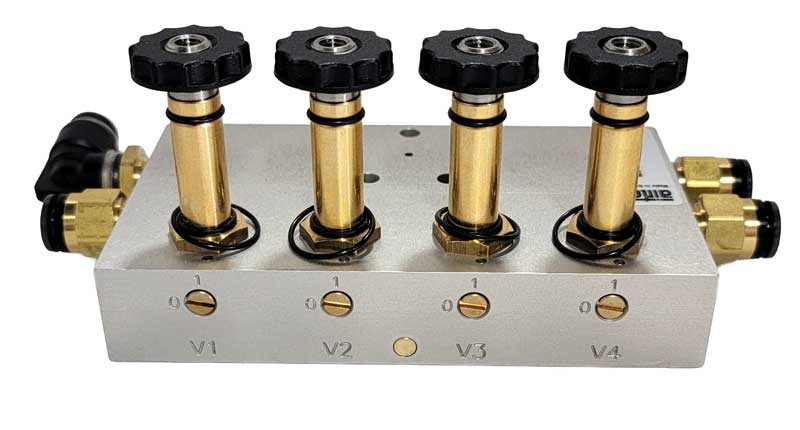

PLC Total Cycle Sequence 180 sec.

Cartridge 1 regenerates for 45 sec. Cartridge 2, 3, 4 receives wet air. PLC switches

Cartridge 2 regenerates for 45 sec. Cartridge 1, 3, 4 receives wet air. PLC switches

PC Total Cycle Sequence 240 sec.

Cartridge 1 regenerates for 60 sec. Cartridge 2, 3, 4 receives wet air. PC switches

Cartridge 2 regenerates for 60 sec. Cartridge 1, 3, 4 receives wet air. PC switches

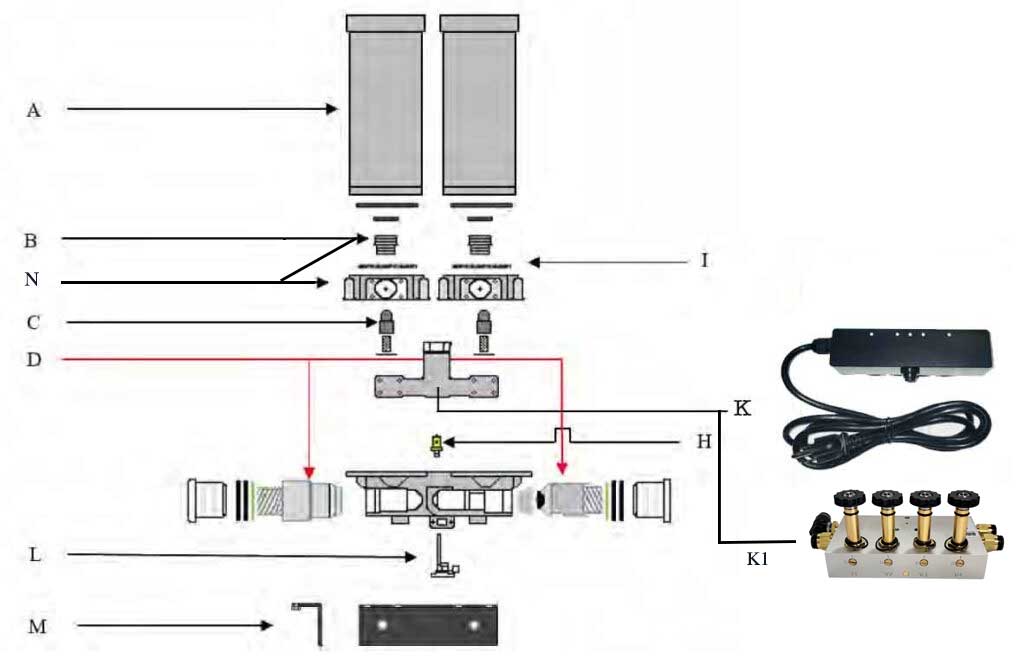

Service Schematic AIR-PAK Dryer w/ PLC

(Represents one dryer within PLC dryer system)

Programmable Logic Control (PLC) Applications (120, 240 400, 600, 800 CFM Dryer Systems)

1. Identify dryer system by counting numbers of desiccant cartridges, e.g., 2, 4, 6

2. Locate service component identity, e.g., A, B, C, etc.

3. Under “Qty”, order appropriate number of kits specific to cartridge total

Air Pak Service Components

Drag to see full table

		Air-Pak w/4lb. Desiccant Cartridges	Service Components
			4	6	8	10	12	18	24
Illustration	Part Number		Qty	Qty	Qty	Qty	Qty	Qty	Qty	Contents of Service Kit
	619832 619700 619950	A	2 2 2	3 3 3	4 4 4	5 5 5	6 6 6	9 9 9	12 12 12	Grey Cartridges -Full Service Kit Blue Cartridges -Full Service Kit White Cartridges -Full Service Kit Includes 2 each desiccant cartridges, inlet & purge valves
	619830 619704 619951	A	2 2 2	3 3 3	4 4 4	5 5 5	6 6 6	9 9 9	12 12 12	Grey Desiccant Cartridge Kit Blue Desiccant Cartridge Kit White Desiccant Cartridge Includes 2 desiccant cartridges
	619702	D	2	3	4	5	6	9	12	Valve Service Includes 2 inlet check valves, 2 purge valves
	619715 619730	C C	2 ~	~ 3	~ 4	~ 5	~ 6	~ 9	~ 12	.030 Regeneration valve kit .060 Regeneration valve kit

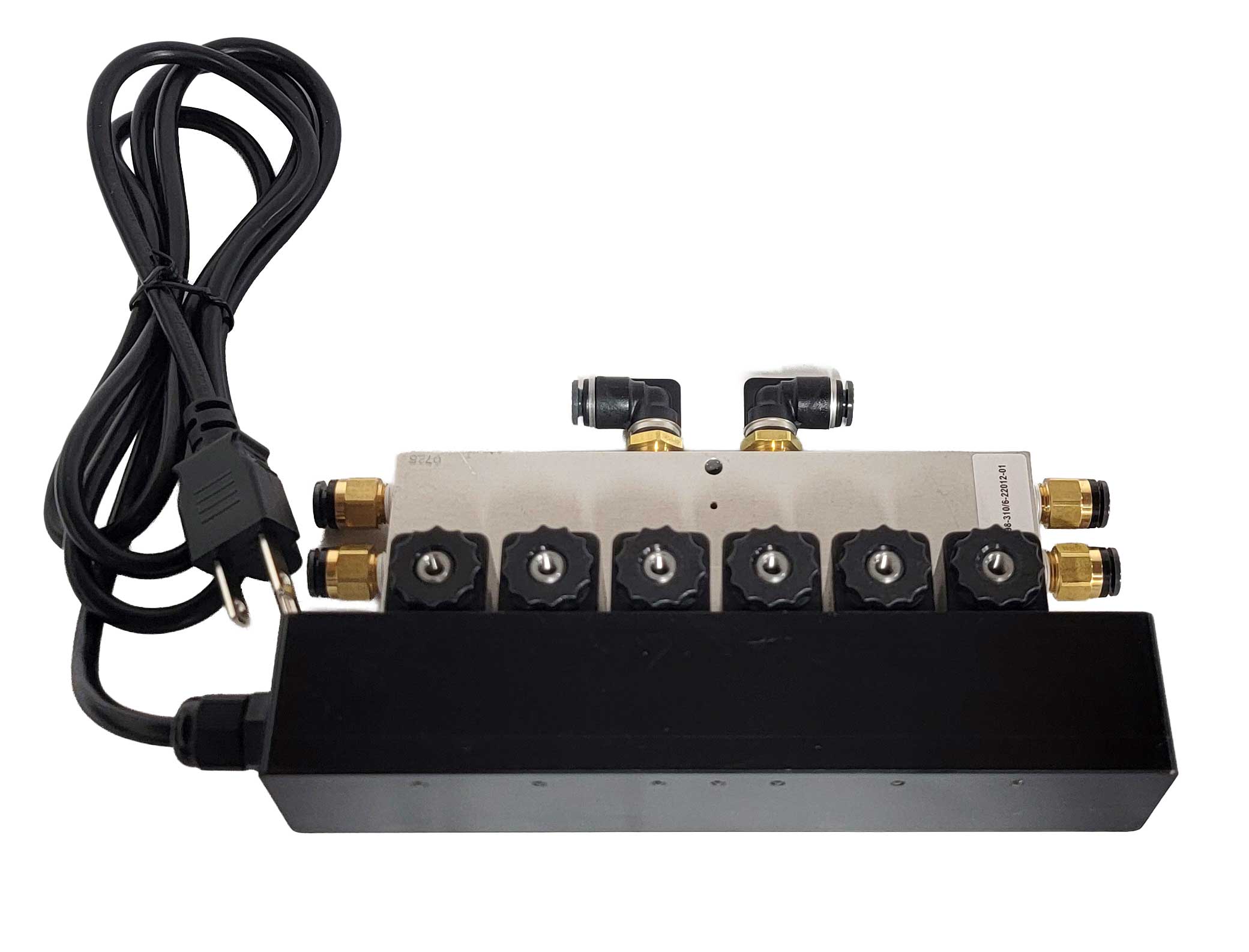

	619812 619820	F F	~ ~	1 ~	~ 1		~ 1	~ 1	~ 1	110 Volt Programed Logic Control 110 Volt Programed Logic Control
	619740	H	2	3	4	5	6	9	12	Pressure Relief Valve
	619750 619782 619784	L	2 2 2	3 3 3	4 4 4	5 5 5	6 6 6	9 9 9	12 12 12	110 VAC Heater Kit (optional) 12 VDC Volt Heater Kit (optional) 24 VDC Volt Heater Kit (optional)
	619860	I	1	3	4	5	6	9	12	.3 Micron Disc Filter
	619760 619765	B	2 2	6 6	8 8	10 10	12 12	18 18	24 24	Cartridge Stud for Grey Cartridges Cartridge Studs for Blue, White, Purple Cartridges
	619770 619915		2 2	4 4	6 6	8 8	12 12	18 18	24 24	Small Mufflers (optional) Large Mufflers (optional)

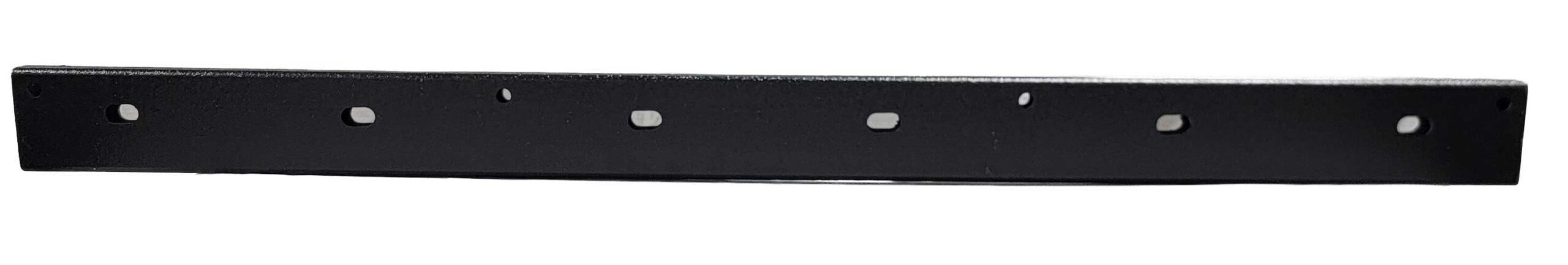

Not Shown	619942		1	1	1	2	2	3	4	Wall Strut w/slot for two cartridge dryer system
	619990	M	2	3	4	5	6	9	12	Wall Mount Bracket

60CFM Unit

SERVICE COMPONENTS w/ 8LB. Desiccant Cartridges

Service Schematic AIR-PAK Dryer w/ PLC

(Represents one dryer within PLC dryer system)

Micro Logic Timer (MLT) & Programmed Logic Controller (PLC) Dryer Systems

1.Identify dryer system by counting numbers of desiccant cartridges, e.g., 2, 4, 6

2.Locate service component identity, e.g., A, B, C, etc.

3.Under “QTY”, order appropriate number of kits specific to cartridge totals

Air Pak Service Components

Drag to see full table

		Air-Pak HC w/8lb. Desiccant Cartridges	Service Components
			2 or 4	6	10	12	18	24
Illustration	Part Number		Qty	Qty	Qty	Qty	Qty	Qty	Contents of Service Kit
	650830 650700 650951	A	2 2 2	3 3 3	5 5 5	6 6 6	9 9 9	12 12 12	Grey Cartridges -Full Service Kit Blue Cartridges -Full Service Kit White Cartridges -Full Service Kit Includes 2 each desiccant cartridges, inlet & purge valves
	4055A002 4055A020 4055A012	A	2 2 2	3 3 3	5 5 5	6 6 6	9 9 9	12 12 12	Grey Desiccant Cartridge Kit Blue Desiccant Cartridge Kit White Desiccant Cartridge Includes 2 desiccant cartridges
	619702	D	2	3	5	6	9	12	Valve Service Kit Kits includes 2 inlet check valves, 2 purge valves
	619730	C	1	3	5	6	9	12	.060 Regeneration valve kit
	619755	E	1	~	~	~	~	~	Air Control Valve – Two air lines
	619790 619924 619912	G	1	~	~	~	~	~	110 Volt Micro Logic Timer (MLT) 12 VDC Micro Logic Timer (MLT) 24 VDC Micro Logic Timer (MLT)
	619812 6198xx 619820	K	1 ~ ~	~ ~ 1	~ 1 ~	~ ~ 1	~ ~ 1	~ ~ 1	110 Volt Programed Logic Control 110 Volt Programed Logic Control 110 Volt Programed Logic Control
	619740	H	2	3	5	6	9	12	Pressure Relief Valve
	619750 619782 619784	L	2 2 2	3 3 3	5 5 5	6 6 6	9 9 9	12 12 12	110 VAC Heater Kit (optional) 12 VDC Volt Heater Kit (optional) 24 VDC Volt Heater Kit (optional)
	619760	I	1	3	5	6	9	12	Disc Filter
	619760 619765	B	4 4	6 6	10 10	12 12	18 18	24 24	Cartridge Stud for Grey Cartridges Cartridge Studs for Blue, White, Purple Cartridges
	619770 619915		4 4	6 6	10 10	12 12	18 18	24 24	Small Mufflers (optional) Large Mufflers (optional)
Not Shown	619942		1	~	~	~	~	~	Wall Strut w/slot for two cartridge dryer system
	619990	M	2	3	5	6	9	12	Wall Mount Bracket
